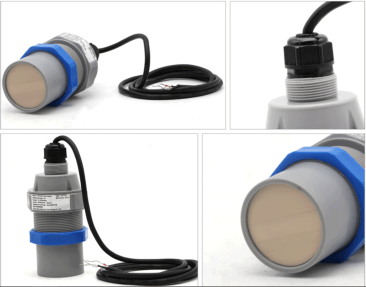

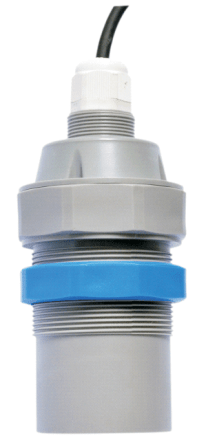

Ultrasonic Level Sensor 0-3 Metre Range, 4-20mA - 12-30V DC

SKU: BFL741-3

Ultrasonic Level Sensor 0-3 Metre Range
4-20mA (2 wire) 12- 30V DC Power
Accuracy +/- 0.25% F.S
Beam Angle <12º
IP67 Rating

  • $412.50
  • $495.00 inc VAT
Qty:

Description

  • SKU
    BFL741-3

Ultrasonic Level Sensor 0-3 Metre Range

4-20mA (2 wire) 12- 30V DC Power
Accuracy +/- 0.25% F.S
Beam Angle <12º
Deadband ≤ 0.25M
IP67 Rating (IP68 Optional)
Operating Temp -10-60 ºC
G 1 1/2" Thread
20 - 43 Khz Operating Frequency (Variable by model)
ABS/PVC Housing Construction
1.5M Flying Lead (Customisable)

Alternative Outputs on request: 0-5V,0-10V,0-20mA, 4-20mA(3-wire),RS485

The BFL741 Ultrasonic Level Sensor is temperature stabilized, providing repeatable results and reliable peformance.
It's ugged design, choice of outputs and adjustable signal strength feature ensures suiatbility in a wide range of applications.

Specification

    Ultrasonic Level Sensor 0-3 Metre Range

    4-20mA (2 wire) 12- 30V DC Power
    Accuracy +/- 0.25% F.S
    Beam Angle <12º
    Deadband ≤ 0.25M
    IP67 Rating (IP68 Optional)
    Operating Temp -10-60 ºC
    G 1 1/2" Thread
    20 - 43 Khz Operating Frequency (Variable by model)
    ABS/PVC Housing Construction
    1.5M Flying Lead (Customisable)

    Alternative Outputs on request: 0-5V,0-10V,0-20mA,4-20mA(3-wire),RS485

    The BFL741 Ultrasonic Level Sensor is temperature stabilized, providing repeatable results and reliable peformance.
    It's ugged design, choice of outputs and adjustable signal strength feature ensures suiatbility in a wide range of applications.

Downloads
