G4 Diaphragm gas meter 1" BS746 connections, 152.4mm Centres

SKU: G4S

G4 Diaphragm gas meter
152.4mm Centres, Qmax 6 m3/h

1" BS746 Connections
Fitted with a test point

3/4" BSP male unions optional

Pulse output optional

Description

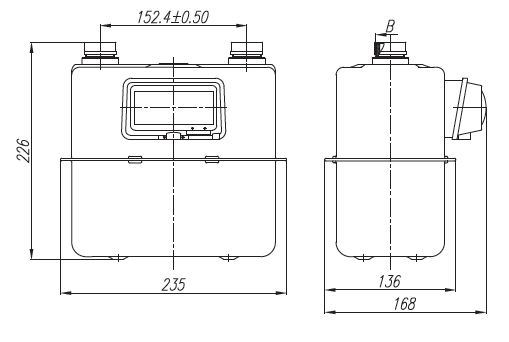

G4 Diaphragm gas meter, Centres Distance 152.4mm

Optional 3/4" BSP unions, Optional pulse output

1" BS746 Connections

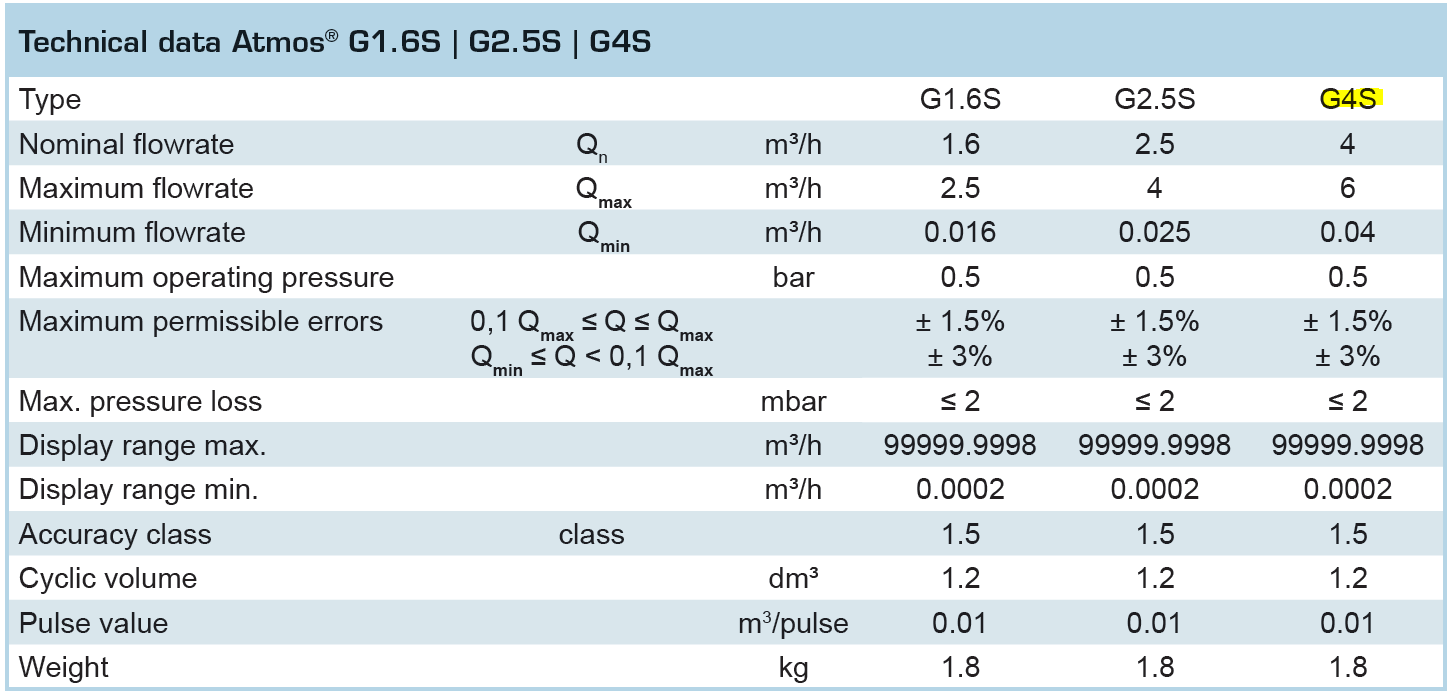

Qmax 6 m3/h
Qmin 0.04 m3/h
Max Pressure 0.5 Bar
Mechanical Register of Total Flow m3
Approved Class 1.5, Env Class M1/E1
EN1359:1998/A1:2006
MID (2014/32/EU)
OIML R137-1 (2012)
Fireproof (HTB) up to 650°C EN1359
Maximum pressure loss: < 2 mbar at flowrates of 6 m³/h

Galvanized steel powder-coated housing for maximum corrosion
resistance. Weight 2 KG

Pulse Output Optional : 0.01 Pulse per m3

Suitable for secondary metering of:
Natural Gas, Town Gas, LPG

Please note that the pipe centres are 152.4mm (others available)
