FDA Conforming OG Flow Meters

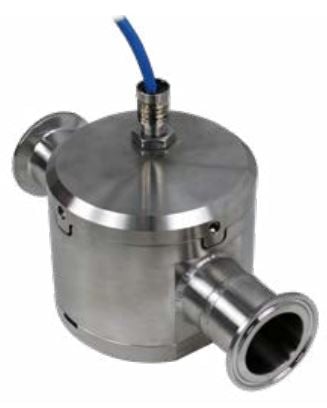

IOG Hygienic Flow Meters : These highly accurate Oval gear type meters conform with FDA specifications when supplied in default Stainless Steel versions with Graphite bearings and Food Grade seals. This range has Tri-clamp connections in the larger models and is ground and polished throughout after Laser welding. These volumetric type meters and are best suited for liquids with a viscosity up to 5.000 mPas. (special models up to 1.000.000 mPas are available.)

Features

• Local / Remote displays available or Pulsed output signal
• High Accuracy and Repeatability
• ATEX Approval options
• FDA Conformity
• Model sizes 1/8" to 3"
• Low Pressure Loss design
• Insensitive to pulsating flow eg. AODD pumps
• No need for flow conditioning upstream or downstream
• High Viscosity option
• Horizontal or Vertical orientation
• Individually Calibrated

:
from
to
Clear all
Products: 1–10 of 10
Show:20
Sort by:Recommended
Sort by:Recommended
  • IOG Oval Gear Flow Meter DN6
    IOG Oval Gear Flow Meter DN6
    SKU: OG-001

    Metering chamber: Stainless steel 316
    Oval gears: Stainless steel 316
    O-Ring: EPDM (Special for FDA Declaration)
    Flow range: 1 - 50 l/Hour above 5 cP
    Temp max: 120°C
    Connections: 1/8" BSP or NPT Female
    Reed switch Potential Free / HE pulse output
    See options

    £1452.64
    £1743.17 inc VAT
  • IOG Oval Gear Flow Meter DN8 LF
    IOG Oval Gear Flow Meter DN8 LF
    SKU: OG-L02

    Metering chamber: Stainless steel 316 (see options)
    Oval gears: Stainless steel 316 (see optoins)
    O-Ring: EPDM (Special for FDA Declaration) see options
    Flow range: 2.4 - 100 l/Hour above 5 cP
    Temp max: 120°C (SS Version)
    Connections: 1/4" BSP or NPT Female
    Reed switch Potential Free / HE pulse output
    See Display options

    £2035.87
    £2443.04 inc VAT
  • IOG Oval Gear Flow Meter DN8
    IOG Oval Gear Flow Meter DN8
    SKU: OG-002

    Metering chamber: Stainless steel 316 (see options)
    Oval gears: Stainless steel 316 (see optoins)
    O-Ring: EPDM (Special for FDA Declaration) see options
    Flow range: 15 - 500 l/Hour above 5 cP
    Temp max: 120°C (SS Version)
    Connections: 1/4" BSP or NPT Female
    Reed switch Potential Free / HE pulse output
    See Display options

    £1552.06
    £1862.47 inc VAT
  • IOG Oval Gear Flow Meter DN15
    IOG Oval Gear Flow Meter DN15
    SKU: OG-005

    Metering chamber: Stainless steel 316
    Oval gears: Stainless steel 316
    O-Ring: EPDM (Special for FDA approval)
    Flow range: 1 - 30 l/min above 5 cP
    Temp max: 120°C
    Connections: 1/2” Tri-Clamp (16 Bar W.P)
    Reed switch pulse output (ATEX Compliant)
    See options

    £2228.66
    £2674.39 inc VAT
  • IOG Oval Gear Flow Meter DN20
    IOG Oval Gear Flow Meter DN20
    SKU: OG-007

    Metering chamber: Stainless steel 316
    Oval gears: Stainless steel 316
    O-Ring: EPDM (Special for FDA approval)
    Flow range: 2 - 66 l/min above 5 cP
    Temp max: 120°C
    Connections: 3/4” Tri-Clamp (16 Bar W.P)
    Reed switch pulse output (ATEX Compliant)
    See options

    £1959.48
    £2351.38 inc VAT
  • IOG Oval Gear Flow Meter DN25
    IOG Oval Gear Flow Meter DN25
    SKU: OG-010

    Metering chamber: Stainless steel 316
    Oval gears: Stainless steel 316
    O-Ring: EPDM (Special for FDA approval)
    Flow range: 2.3 - 68 l/min above 5 cP
    Temp max: 120°C
    Connections: 1” Tri Clamp (16 Bar W.P)
    Reed switch pulse output (ATEX Compliant)
    See options

    £1995.86
    £2395.03 inc VAT
  • IOG Oval Gear Flow Meter DN25 High Flow
    IOG Oval Gear Flow Meter DN25 High Flow
    SKU: OG-H10

    Metering chamber: Stainless steel 316
    Oval gears: Stainless steel 316
    O-Ring: EPDM (Special for FDA approval)
    Flow range: 5.7 - 170 l/min above 5 cP
    Temp max: 120°C
    Connections: 1” Tri Clamp (16 Bar W.P)
    Reed switch pulse output (ATEX Compliant)
    See options

    £2400.84
    £2881.01 inc VAT
  • IOG Oval Gear Flow Meter DN40
    IOG Oval Gear Flow Meter DN40
    SKU: OG-015

    Metering chamber: Stainless steel 316
    Oval gears: Stainless steel 316
    O-Ring: EPDM (Special for FDA approval)
    Flow range: 9.5 - 246 l/min above 5 cP
    Temp max: 120°C
    Connections: 1 1/2” Tri-Clamp (16 Bar W.P)
    Reed switch pulse output (ATEX Compliant)
    See options

    £4051.11
    £4861.33 inc VAT
  • IOG Oval Gear Flow Meter DN50
    IOG Oval Gear Flow Meter DN50
    SKU: OG-020

    Metering chamber: Stainless steel 316
    Oval gears: Stainless steel 316
    O-Ring: EPDM (Special for FDA approval)
    Flow range: 15 - 379 l/min above 5 cP
    Temp max: 120°C
    Connections: 2” Tri-Clamp (10 Bar W.P)
    Reed switch pulse output (ATEX Compliant)
    See options

    £5171.51
    £6205.81 inc VAT
  • IOG Oval Gear Flow Meter DN80
    IOG Oval Gear Flow Meter DN80
    SKU: OG-030

    Metering chamber: Stainless steel 316
    Oval gears: Stainless steel 316
    O-Ring: EPDM (Special for FDA approval)
    Flow range: 19 - 700 l/min above 5 cP
    Temp max: 120°C
    Connections: 3” Tri Clamp (10 Bar W.P)
    Reed switch pulse output (ATEX Compliant)
    See options

    £10138.09
    £12165.71 inc VAT
