Level Sensor Selection Tool

Looking for a level sensor, but confused by the huge range of options? Use our product filter on the left to find the best product for your application. Contact our technical sales team with your application specifications for a direct quotation here>>

22 products found
Items: 120 of 22
Drop items here to shop
Product has been added
  • LMP 307 Submersible level transmitter :: ATEX Approved
    LMP 307 Submersible level transmitter :: ATEX Approved
    SKU: 45

    Hazardous Area Submersible Level transmitter
    1 mWG to 250 mWG - Choose from options
    Rugged Stainless steel construction - removable nose cone
    PT100 Temperature Output option
    Accuracy according to IEC 60770:
    standard: 0.35 % FSO option: 0.25 % / 0.1 % FSO
    ATEX Approved: (SIL Approval optional)
    zone 0: II 1G Ex ia IIC T4 Ga
    zone 2: II 1D Ex ia IIIC T 85°C Da

    £333.30
    £399.96 inc VAT

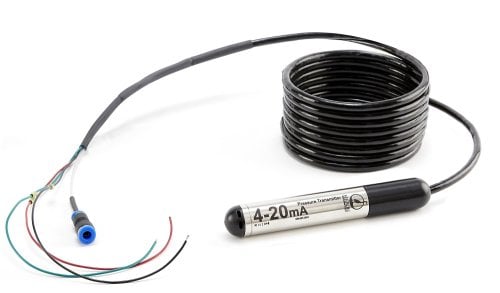

  • Heron 4-20ma vented Pressure Transmitter (0-10m)
    Heron 4-20ma vented Pressure Transmitter (0-10m)
    SKU: 5027
    4-20ma vented pressure transmitter
    0-10m level measurement range
    0.1% full scale accuracy
    stainless steel construction
    compatible with most 3rd part dataloggers and telemetry systems
    £355.00
    £426.00 inc VAT
  • Heron 4-20ma vented Pressure Transmitter (0-30m)
    Heron 4-20ma vented Pressure Transmitter (0-30m)
    SKU: 5028
    4-20ma vented pressure transmitter
    0-30m level measurement range
    0.1% full scale accuracy
    stainless steel construction
    compatible with most 3rd part dataloggers and telemetry systems
    £355.00
    £426.00 inc VAT
  • Heron 4-20ma vented Pressure Transmitter (0-200m)
    Heron 4-20ma vented Pressure Transmitter (0-200m)
    SKU: 5030
    4-20ma vented pressure transmitter
    0-200m level measurement range
    0.1% full scale accuracy
    stainless steel construction
    compatible with most 3rd part dataloggers and telemetry systems
    £355.00
    £426.00 inc VAT
  • IRU-5000 short Range ultrasonic level Transmitter
    IRU-5000 short Range ultrasonic level Transmitter
    SKU: IRU-5000
    IRU-5000
    0.1 - 2m range
    ±0.25 of detected range
    2.5mm resolution
    4-20ma output with optional NPN trip points
    0-2.5v / 0-5v selectable
    IP65 protection rating
    1 in. NPT, 2 in. NPT and 2 in. sanitary ferrule connections available
    1.8m cable - pigtail





    £509.85
    £611.82 inc VAT

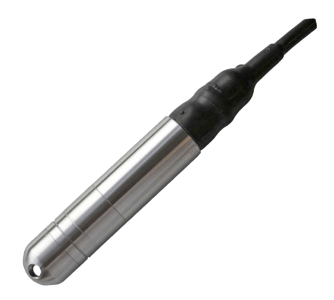

  • IWSL - Submersible level transmitter with WRAS Approval
    IWSL - Submersible level transmitter with WRAS Approval
    SKU: IWSL

    Submersible Level transmitter- Silicone Sensor
    1 mWG to 100 mWG - Choose from options
    Rugged Stainless steel, Silicone piezo-resistive sensor
    Accuracy: <±0.1% FS BFSL (0.06% optional)

    £381.51
    £457.81 inc VAT
  • LPU-2127 Ultrasonic Level Transmitter with Keypad and Display
    LPU-2127 Ultrasonic Level Transmitter with Keypad and Display
    SKU: LPU-2127
    Ultrasonic level transmitter with keypad and LCD display
    Programming can be done entirely through the keypad
    Loop powered 4-20ma output
    0.3 - 7.6m measurement range
    ±0.25% accuracy of detected range
    £798.93
    £958.72 inc VAT
  • LPU-2428 Loop Powered Ultrasonic Sensor
    LPU-2428 Loop Powered Ultrasonic Sensor
    SKU: LPU-2428
    IRU-2428
    0.3 - 7.6m range
    ±0.25 of detected range
    2.5mm resolution
    4-20ma output
    IP65 protection rating
    2 in. NPT
    onboard calculations for distance level, volume or flow
    1.8m cable - pigtail
    £832.70
    £999.24 inc VAT
  • Modbus / Tank Cloud Ultrasonic Level Sensor
    Modbus / Tank Cloud Ultrasonic Level Sensor
    SKU: MNU
    Modbus enabled ultrasonic level sensor
    Ranges available up to 2, 7.5 and 12m
    Compatible with DCR-1006A, MND displays and third party modbus controllers
    ±0.25% accuracy of detected range
    1.8m cable - pigtail
    £517.28
    £620.74 inc VAT
  • Micropuls 51 Radar Level Sensor upto 30m
    Micropuls 51 Radar Level Sensor upto 30m
    SKU: MP51
    Micropuls 51
    Radar Level Sensor

    Max 30 Metres (Liquids)
    1 1/2" BSP Thread (Standard)
    14-36V DC (220VAC option)
    4-20mA (2 Wire Hart Protocol)
    ATEX Approval Optional
    £1298.00
    £1557.60 inc VAT
  • Micropuls 52 Radar Level Sensor upto 30m
    Micropuls 52 Radar Level Sensor upto 30m
    SKU: MP52
    Micropuls 52
    Radar Level Sensor

    Max 30 Metres (Liquids)
    Max 150 Deg °C
    Flanged DN50
    14-36V DC (220VAC option)
    4-20mA (Hart Protocol)
    ATEX Approval Optional
    £1945.20
    £2334.24 inc VAT
  • Micropuls 55 Radar Level Sensor upto 10m
    Micropuls 55 Radar Level Sensor upto 10m
    SKU: MP55
    Micropuls 55
    Radar Level Sensor

    Max 10 Metres (Liquids)
    Beam Angle 22º
    1 1/2" BSP Thread (Standard)
    14-36V DC (220VAC option)
    4-20mA (Hart Protocol)
    ATEX Approval Optional
    £1224.00
    £1468.80 inc VAT
  • Micropuls 56 Radar Level Sensor upto 30m
    Micropuls 56 Radar Level Sensor upto 30m
    SKU: MP56
    Micropuls 56
    Radar Level Sensor

    Max 30 Metres (Liquids)
    Accuracy +/-3mm
    1 1/2" BSP Thread (or flanged)
    14-36V DC (220VAC option)
    4-20mA (Hart Protocol)
    ATEX Approval Optional
    £1580.40
    £1896.48 inc VAT
  • Micropuls 57 Radar Level Sensor upto 20m
    Micropuls 57 Radar Level Sensor upto 20m
    SKU: MP57
    Micropuls 57
    Radar Level Sensor

    Max 20 Metres (Liquids)
    Accuracy +/- 3mm
    Flanged DN50/DN80/DN100
    14-36V DC (220VAC option)
    4-20mA (Hart Protocol)
    ATEX Approval Optional
    £1530.00
    £1836.00 inc VAT
  • Micropuls 58 Radar Level Sensor up to 70m
    Micropuls 58 Radar Level Sensor up to 70m
    SKU: MP58
    Micropuls 58
    Radar Level Sensor

    Max 70 Metres (Bulk Solids)
    Accuracy +/-15mm
    1 1/2" BSP Thread (or flanged)
    14-36V DC (220VAC option)
    4-20mA (Hart Protocol)
    ATEX Approval Optional
    £1824.40
    £2189.28 inc VAT
  • Micropuls 59 Radar Level Sensor up to 30m
    Micropuls 59 Radar Level Sensor up to 30m
    SKU: MP59
    Micropuls 59
    Radar Level Sensor

    Max 30 Metres (Granular Solids)
    Accuracy +/-10mm
    1 1/2" BSP Thread (or flanged)
    14-36V DC (220VAC option)
    4-20mA (Hart Protocol)
    ATEX Approval Optional
    £1378.24
    £1653.89 inc VAT
  • Micropuls 61 Radar Level Sensor 15/30/70 Metres
    Micropuls 61 Radar Level Sensor 15/30/70 Metres
    SKU: MP61
    Micropuls 61
    IP68 Radar Level Sensor 15, 30 or 70m range models

    Open Channel Flow Measurement
    Threaded or Flanged Top Mount - Brackets available
    Sun Shield Option
    14-36V DC
    4-20mA (2 Wire Hart Protocol)
    RS485 Modbus option
    ATEX Approval Optional
    £1360.88
    £1633.06 inc VAT
  • Microson 551 Ultrasonic Level Sensor 0.025 - 5 Metres
    Microson 551 Ultrasonic Level Sensor 0.025 - 5 Metres
    SKU: MS551
    Microson 551
    U
    ltrasonic Level Sensor
    0.025 - 5 Metres (Liquids)
    10º Beam Angle
    1 1/2" BSP Thread (Standard)
    14-36V DC (220VAC option)
    ATEX Optional
    £501.60
    £601.92 inc VAT
  • Microson 552 Ultrasonic Level Sensor 0.4 - 8 Metres
    Microson 552 Ultrasonic Level Sensor 0.4 - 8 Metres
    SKU: MS552
    Microson 552
    U
    ltrasonic Level Sensor
    0.4 - 8 Metres (Liquids)
    5.5º Beam Angle
    2" BSP Thread (Standard)
    14-36V DC (220VAC option)
    ATEX Optional
    £546.00
    £655.20 inc VAT
  • Microson 553 Ultrasonic Level Sensor 0.5 - 15 Metres
    Microson 553 Ultrasonic Level Sensor 0.5 - 15 Metres
    SKU: MS553
    Microson 553
    U
    ltrasonic Level Sensor
    0.5 - 15 Metres Liquid (7m Solids)
    3.5º Beam Angle
    Flange or Bracket Mounted
    14-36V DC (220VAC option)
    ATEX Optional
    £620.80
    £744.96 inc VAT
Items: 120 of 22

To narrow down your level sensor search, select the filter options from each group that match your requirements. For example, if you are looking for a level transmitter for liquids which uses Ultrasonic technology and has a Modbus communications output, you would select those options and see this result
