Pressure Sensor Icon

Pressure Sensor Selection Tool

Looking for a pressure sensor, but confused by the huge range of options? Use our product filter on the left to find the best product for your application. Contact our technical sales team with your application specifications for a direct quotation here>>

19 products found
Items: 1–19 of 19
Show: 20
Sort by: Recommended
Drop items here to shop
Product has been added
Checkout
  • LMP 307 Submersible level transmitter :: ATEX Approved
    LMP 307 Submersible level transmitter :: ATEX Approved
    SKU: 45

    Hazardous Area Submersible Level transmitter
    1 mWG to 250 mWG - Choose from options
    Rugged Stainless steel construction - removable nose cone
    PT100 Temperature Output option
    Accuracy according to IEC 60770:
    standard: 0.35 % FSO option: 0.25 % / 0.1 % FSO
    ATEX Approved: (SIL Approval optional)
    zone 0: II 1G Ex ia IIC T4 Ga
    zone 2: II 1D Ex ia IIIC T 85°C Da
    $451.00
    $541.20 inc VAT
  • Heron 4-20ma vented Pressure Transmitter (0-10m)
    Heron 4-20ma vented Pressure Transmitter (0-10m)
    SKU: 5027
    4-20ma vented pressure transmitter
    0-10m level measurement range
    0.1% full scale accuracy
    stainless steel construction
    compatible with most 3rd part dataloggers and telemetry systems
    $623.75
    $748.50 inc VAT
  • Heron 4-20ma vented Pressure Transmitter (0-30m)
    Heron 4-20ma vented Pressure Transmitter (0-30m)
    SKU: 5028
    4-20ma vented pressure transmitter
    0-30m level measurement range
    0.1% full scale accuracy
    stainless steel construction
    compatible with most 3rd part dataloggers and telemetry systems
    $623.75
    $748.50 inc VAT
  • Heron 4-20ma vented Pressure Transmitter (0-60m)
    Heron 4-20ma vented Pressure Transmitter (0-60m)
    SKU: 5029
    4-20ma vented pressure transmitter
    0-60m level measurement range
    0.1% full scale accuracy
    stainless steel construction
    compatible with most 3rd part dataloggers and telemetry systems
    $623.75
    $748.50 inc VAT
  • Heron 4-20ma vented Pressure Transmitter (0-200m)
    Heron 4-20ma vented Pressure Transmitter (0-200m)
    SKU: 5030
    4-20ma vented pressure transmitter
    0-200m level measurement range
    0.1% full scale accuracy
    stainless steel construction
    compatible with most 3rd part dataloggers and telemetry systems
    $623.75
    $748.50 inc VAT

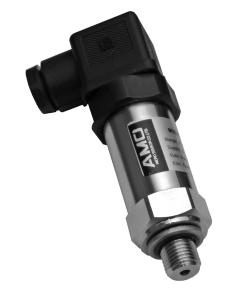

  • AMO M10 Budget Industrial Pressure Transducer 4-20mA Output (2-wire)
    AMO M10 Budget Industrial Pressure Transducer 4-20mA Output (2-wire)
    SKU: AMO-M10
    Stainless Steel Pressure Transmitter
    Bar Gauge Pressure +/-0.5% F.S Acc
    OperationTemp -20 to +85℃
    4-20mA Output (2-wire) 8-28V DC
    G 1/4" BSP Male thread, Viton Seal
    Elec Connection : Hirschman plug
    $93.75
    $112.50 inc VAT
  • GPT200 Industrial Pressure Transducer 4-20mA Output (3-wire)
    GPT200 Industrial Pressure Transducer 4-20mA Output (3-wire)
    SKU: GPT200-XX-B-G-T1-V3-A2-B1-S2-C2
    316 Stainless Steel Pressure Transmitter
    GPT200-XX-B-G-T1-V3-A2-B1-S2-C2
    Bar Gauge Pressure +/-0.25% F.S Acc
    Incorporated tempertaure sensor compensation
    4-20ma Output (3-wire) 12-30V DC
    1/4" BSP Male thread
    DIN43650 Elec Connection
    $118.75
    $142.50 inc VAT
  • IWSL - Submersible level transmitter with Water Approval
    IWSL - Submersible level transmitter with Water Approval
    SKU: IWSL

    Submersible Level transmitter- Silicone Sensor
    1 mWG to 100 mWG - Choose from options
    Rugged Stainless steel, Silicone piezo-resistive sensor
    Accuracy: <±0.1% FS BFSL (0.06% optional)
    $0.00
    $0.00 inc VAT
  • M20 Industrial Pressure Transducer 4-20mA Output (See options)
    M20 Industrial Pressure Transducer 4-20mA Output (See options)
    SKU: M20
    Stainless Steel 316L Pressure Transmitter
    Gauge, Absolute, Positive/Ngative
    Accuracy +/-0.5% F.S
    Operational Temp -30 to +85℃
    4-20mA Output (2-wire) 8-30V DC (See options)
    G 1/4" BSP Male thread, Viton Seal (See options)
    Elec Connection : Hirschman plug
    Approvals: CE, RoHS, REACH
    $99.94
    $119.93 inc VAT
  • Submersible Level Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)
    Submersible Level Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)
    SKU: MPM426W

    Submersible Level Sensor
    0-200 mWG (See ranges)
    Stainless Steel Construction/ Viton Seals
    Accuracy(LIN.+HYS.+REP.): ± 0.25%FS (typ.)
    Power Supply: 15-28V DC
    Output Signal: 4-20mA / 1-5V / 0-10V DC
    Cable Material: PVC or Polyurethane
    Operation Temperature: -10 to +80℃
    Housing Protection: IP68
    Housing Material: SS 1Cr18Ni9Ti (304)
    Diaphragm Material: SS 316L
    Certificates: CE, CCS, CNEX, RoHS
    $247.50
    $297.00 inc VAT
  • Submersible Level and Temperature Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)
    Submersible Level and Temperature Sensor, Vented Cable, 4-20mA, 0-200 mWG (See ranges)
    SKU: MPM4811

    Submersible Level and Temperature Sensor
    0-200 mWG (See ranges)
    Stainless Steel Construction/ Viton Seals
    Accuracy: ±0.5%FS (level); ±2℃(temperature);
    Power Supply: 12-30V DC
    Output Signal: 4-20mA (level) + 4-20mA (temperature)
    Cable Material: PVC or Polyurethane
    Operation Temperature: -10 to +70℃
    Housing Protection: IP68
    Housing Material: SS 1Cr18Ni9Ti (304)
    Diaphragm Material: SS 316L
    Certificates: CE, RoHS
    $312.50
    $375.00 inc VAT
  • Industrial Pressure Transmitter 4-20mA Output (2-wire) ATEX Approved
    Industrial Pressure Transmitter 4-20mA Output (2-wire) ATEX Approved
    SKU: MPM489
    ATEX Approved Stainless Steel Pressure Transmitter
    Bar Gauge Pressure +/-0.5% F.S Acc
    OperationTemp -30 to +80℃
    4-20mA Output (2-wire) 11-28V DC
    1/4" BSP Male thread, Viton Seal
    Elec Connection : DIN43650 plug
    Ex-:ATEX Exia IIC T4 Ga
    CE, ATEX, DNV, CCS, CNEX, RoHS

    $162.44
    $194.93 inc VAT
  • MPM4891 Pressure Transducer with built-in Display 4-20mA Output (2-wire)
    MPM4891 Pressure Transducer with built-in Display 4-20mA Output (2-wire)
    SKU: MPM4891
    Stainless Steel Pressure Transmitter with LED Display
    Bar Gauge Pressure +/-0.5% F.S Acc
    OperationTemp -20 to +75℃
    4-20mA Output (2-wire) 11-28V DC
    1/2" BSP Male thread, Viton Seal (See options)
    Elec Connection : Hirschman plug
    $146.25
    $175.50 inc VAT
  • ATEX Submersible Level Sensor, Vented Cable, 4-20mA
    ATEX Submersible Level Sensor, Vented Cable, 4-20mA
    SKU: MPM489W

    ATEX Submersible Level Sensor


    Stainless Steel Construction
    IP68 Protection
    Ranges between 0-100 mWG (see drop down)
    +/- 0.5% Accuracy F.S
    Vented Cable
    4-20mA (2 wire) 11-28V DC
    Application temp range: -10℃~70℃
    Application temp range: -10℃~60℃(Ex ia)
    $263.75
    $316.50 inc VAT
  • PG10 IP65 Digital Pressure Gauge
    PG10 IP65 Digital Pressure Gauge
    SKU: PG10
    PG10 Digital Pressure Gauge
    Large, full 5 digit with 0.68in. characters
    270° Radial Bar Graph
    Available ranges up to 10,000 PSI
    ±0.25% accuracy of full scale
    User selectable units of measure - (psi, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm2, lbf)
    BSP / NPT connections available
    $858.20
    $1029.84 inc VAT
  • PG5 Digital Pressure Gauge
    PG5 Digital Pressure Gauge
    SKU: PG5
    PG5 Digital Pressure Gauge
    Large, full 5 digit with 0.4in. characters
    Available ranges up to 10,000 PSI
    ±0.25% accuracy of full scale
    User selectable units of measure - (psi, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm2)
    BSP / NPT connections available
    $501.94
    $602.33 inc VAT
  • PG7 IP67 Digital Pressure Gauge
    PG7 IP67 Digital Pressure Gauge
    SKU: PG7
    PG7 Digital Pressure Gauge
    Large, full 5 digit with 0.4in. characters
    Available ranges up to 10,000 PSI
    ±0.25% accuracy of full scale
    User selectable units of measure - (psi, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm2)
    BSP / NPT connections available
    IP67 rated enclosure
    $588.48
    $706.17 inc VAT
  • PT-200 Industrial Pressure Transducer
    PT-200 Industrial Pressure Transducer
    SKU: PT-200
    Stainless Steel Pressure Transmitter
    100 - 10,000 PSIG ranges available
    Incorporated tempertaure sensor compensation
    4-20ma Output
    Fitted cable or packard connection
    1/4" NPT threaded connection

    $162.50
    $195.00 inc VAT
  • PT-500 ATEX submersible level transmitter
    PT-500 ATEX submersible level transmitter
    SKU: PT-500C
    Submersible pressure transducer
    ATEX approved - Aex ia IIB T4
    0 - 200 mWG range
    mA, VDC, Modbus outputs available
    0.25% FSO - 0.1% Option available



    $480.55
    $576.66 inc VAT

To narrow down your pressure sensor search, select the filter options from each group that match your requirements. For example, if you are looking for a submersible pressure transmitter for liquids which has a 4-20mA output and is ranged up to 5 Barg, you would select those options and see this result
