3" Flanged TBZ Digital Gas Flow Turbine :: Qmin 15 Qmax 300 m3/h

SKU: TBZ300

TBZ300
3" Flanged Digital Gas Flow Turbine
Qmin 10 to Qmax 100 m3/h
Max 980kPa

  • Flange Kit
  • Pulse Output
  • £2474.80
  • £2969.76 inc VAT
Qty:

Description

  • Weight
    9.4000 kg
  • SKU
    TBZ300

TBZ300
3" Flanged Digital Gas Flow Turbine
Qmin 10 to Qmax 100 m3/h
Max 980kPa
TBZ low pressure drop turbine gas flow meters. Compact and light-weight with Battery powered operation
these models take up minimal space and offer the option of Pressure & Temperature correction to
show displayed gas flow to standard conditions.

  • Lightweight Aluminium Body Construction with Steel Flanges
  • LCD Display Rate / Total / Re-set Total
  • Installation in Horizontal or Vertical pipes
  • Max Pressure 980kPa or 350 kPa
  • Temperature -10 to + 60 ºC
  • Accuracy (1% volume at full scale).
  • 7yr Lithium Battery
  • Pulse Output (Low Frequency and High Frequency options)

Suitable for: Natural Gas,LPG,Nitrogen, Air, etc.
Guide for Selecting Aichi Turbine Gas Meter Model TBZ Series

Model TBZ Series

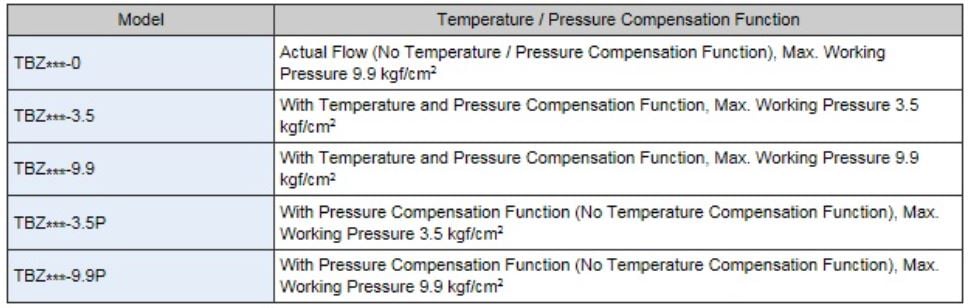

For TBZ series, there are models that have temperature / pressure compensation function. This function is to convert measured actual gas flow to gas flow at certain temperature and / or pressure condition for display, as gas volume changes by variation of temperature and pressure. The relationship between TBZ model and temperature / pressure compensation function is as the following table.

Normally, temperature / pressure condition at which measured actual gas flow is compensated will be Temperature 0°C and Pressure 1 atm (1atmospheric pressure). However, other value could be set in case it is requested (There are condition to select the value).

Specification

    Specifications

    The model with the correcting function (TBZ series)

    Basic model TBZ60 TBZ150 TBZ300
    Model name Flow rate correcting model (with the functions of temperature and pressure correction) - TBZ
    60-3.5
    TBZ
    60-9.9
    - TBZ
    150-3.5
    TBZ
    150-9.9
    - TBZ
    300-3.5
    TBZ
    300-9.9
    Actual flow rate model (without the functions of temperature and pressure) TBZ
    60-0
    - - TBZ
    150-0
    - - TBZ
    300-0
    - -
    Operating flow rate range *1 6~60m3/h 12.5~150m3/h 30~300m3/h
    Maximum operating pressure 980kPa 350kPa 980kPa 980kPa 350kPa 980kPa 980kPa 350kPa 980kPa
    Accuracy Flow rate measuring parts ±1%FS and ±3%RS
    Operator parts and temperature and pressure correction parts - ±2%
    RSmax
    ±3%
    RSmax
    - ±2%
    RSmax
    ±3%
    RSmax
    - ±2%
    RSmax
    ±3%
    RSmax
    Display Corrected gross accumulated flow rate
    (Only for the corrected flow rate model)
    Large LCD in 9 digits with minimum reading of 10 L Large LCD in 9 digits with minimum reading of 100 L
    Trip flow rate *2 Large LCD in 8 digits with minimum reading of 10 L Large LCD in 8 digits with minimum reading of 100 L
    Unadjusted gross accumulated flow rate *3 Large LCD in 9 digits with minimum reading of 10 L Large LCD in 9 digits with minimum reading of 100 L
    Corrected instantaneous flow rate
    (Only for the flow rate correction model)
    LCD in 4 digits with minimum reading of 0.1 m3/h LCD in 4 digits with minimum reading of 1 m3/h
    Unadjusted instantaneous flow rate LCD in 4 digits with minimum reading of 0.1 m3/h LCD in 4 digits with minimum reading of 1 m3/h
    Temperature
    (Only for the models with temperature and pressure correction)
    LCD in 3 digits with minimum reading of 0.1 m3/h
    Pressure
    (Only for the corrected flow rate model)
    LCD in 3 digits with minimum reading of 0.1 m3/h
    Diameters of connected parts JIS 10K 40A flange JIS 10K 50A flange JIS 10K 80A flange
    Operating temperature range -10℃~+60℃
    Measurable gases *4 Town gas, LPG, nitrogen, etc.
    Mounting position Horizontal and Vertical (Display supports both directions.)
    Installation location Indoor and outdoor * 5
    Case structure Drip-proof structure, IPX 2 equivalent (JIS-CO920)
    Power source Built-in lithium battery
    Output signal Two systems of open collectors (corrected pulse and unadjusted pulse * 6)
    Standard pulse unit width * 7 100 L/P
    Maximum load: 24 VDC and 20 mA; Pulse width: 40 msec
    Materials Main piping: Stainless steel; Flange: Steel; Display: Aluminum alloy
    Temperature sensor Platinum resistance temperature detector thermal sensor: JIS A class
    Pressure sensor Semiconductor type pressure sensor (High precision)
    Mass 5.3kg 6.0kg 9.4kg



    *1. Operating flow rate range is the range of the actual flow (unadjusted flow rate)..
    *2. Corrected trip accumulated flow rate for the flow rate correction model (with temperature and pressure correction) and unadjusted trip accumulated flow rate for the actual flow rate model (without temperature and pressure correction)..
    *3. Under the conditions of pressure 100 kPa or higher for the -3.5 model and 350 kPa or higher for the – 9.9 model where the temperature is at 25°C..
    *4. Prevent oil mist (Carbide grade C5 or higher), dust particles and the like from entering into the meter..
    *5. Avoid direct contact of water onto the meter if the meter is installed outdoors..
    *6: Unadjusted pulse and high-density pulse are the actual pulse synchronized with the rotation of impellers..
    *7. TBZ uses corrected pulse while TBX uses unit pulse.
