Industrial Pressure Transmitter 4-20mA Output (2-wire) ATEX Approved

Industrial Pressure Transmitter 4-20mA Output (2-wire) ATEX Approved

SKU: MPM489
ATEX Approved Stainless Steel Pressure Transmitter
Bar Gauge Pressure +/-0.5% F.S Acc
OperationTemp -30 to +80℃
4-20mA Output (2-wire) 11-28V DC
1/4" BSP Male thread, Viton Seal
Elec Connection : DIN43650 plug
Ex-:ATEX Exia IIC T4 Ga
CE, ATEX, DNV, CCS, CNEX, RoHS

  • Pressure Range
  • £195.00
  • £234.00 inc VAT


Description

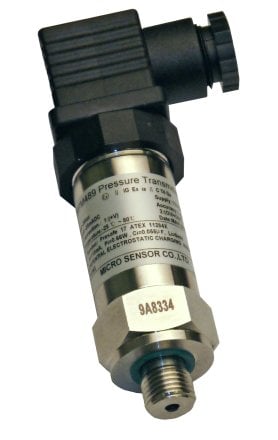

MPM489 Industrial Pressure Transducer 4-20mA Output (2-wire) ATEX Approved

Pressure Range:-1bar...0~0.1bar...1000bar
Pressure Type:Gauge/Absolute/SealedGauge
Over-pressure:1.5 times FS
Accuracy: 0.5% FS(typ.)
Operation Temp:-30~+80℃(-20~+100℃ optional)
Power Supply: 11~28V DC
Output Signal:4~20mA DC(2-wire)
Process Connection: G1/2,G1/4,Flush
Electrical Connection: DIN43650 plug, 1.5 mcable, M12*1plug(4-core)
Diaphragm Material: SS.316L (Tantalum optional)
Housing Material: AISI 304 SS (1Cr18Ni9Ti) , 316 SS optional
Ex-:ATEX Exia IIC T4 Ga

Certificates:CE, ATEX, Marine approval DNV, CCS, CNEX, RoHS


The MPM489 pressure transmitter is piezoresistive with adjustable zero and span . This transmitter uses a proprietary circuit for stable and accurate measurement with integrated temperature compensation.

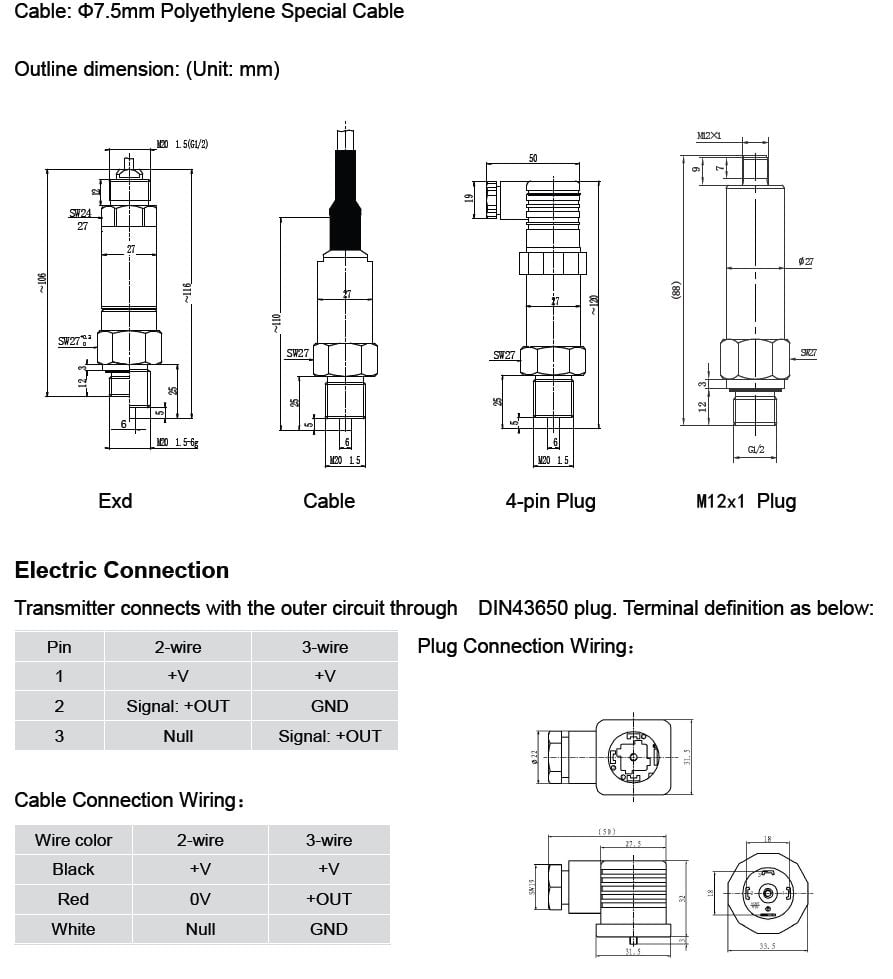

Specification


    MPM489 Industrial Pressure Transducer 4-20mA Output (2-wire) ATEX Approved

    Pressure Range:-1bar...0~0.1bar...1000bar
    Pressure Type:Gauge/Absolute/SealedGauge
    Over-pressure:1.5 times FS
    Accuracy: 0.5% FS(typ.)
    Operation Temp:-30~+80℃(-20~+100℃ optional)
    Power Supply: 11~28V DC
    Output Signal:4~20mA DC(2-wire)
    Process Connection: G1/2,G1/4,Flush
    Electrical Connection: DIN43650 plug, 1.5 mcable, M12*1plug(4-core)
    Diaphragm Material: SS.316L (Tantalum optional)
    Housing Material: AISI 304 SS (1Cr18Ni9Ti) , 316 SS optional
    Ex-:ATEX Exia IIC T4 Ga


    Certificates:CE, ATEX, Marine DNV, CCS, CNEX, RoHS
