MTM - Metreg Gas Turbine Flow Meter :: DN150, G650

SKU: MTM-G650-DN150

Nominal Size: DN150
Meter Size: G650
Pressure Class: PN16
Measuring range: 20:1, 50 - 1000 m3/h
MID Class 1 (DIN EN 12261:2002) OIML R137-1&2: 2012
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensors:  1xLF (Reed) Typ 1 Imp/m3

  • Flange Type
  • Thermowell
  • Calibration
  • Mechanical Index
  • Oil Pump
  • Pulse Output
  • $3867.28
  • $4640.74 inc VAT
Qty:

Description

  • SKU
    MTM-G650-DN150


MTM - Metreg Turbine Gas Flow Meter :: DN150, G650
Approvals according to:
MID Class 1 (DIN EN 12261:2002) OIML R137-1&2: 2012
PED (PED 97/23/EG), ATEX
Nominal Size: DN150
Meter Size: G650
Pressure Class: PN16
Measuring range: 20:1, 50 - 1000 m3/h
Meter housing: Aluminium
Turbine wheel: Aluminium
Index head: Composite, 8-digit
Sensors:  1xLF (Reed) Typ 1 Imp/m3

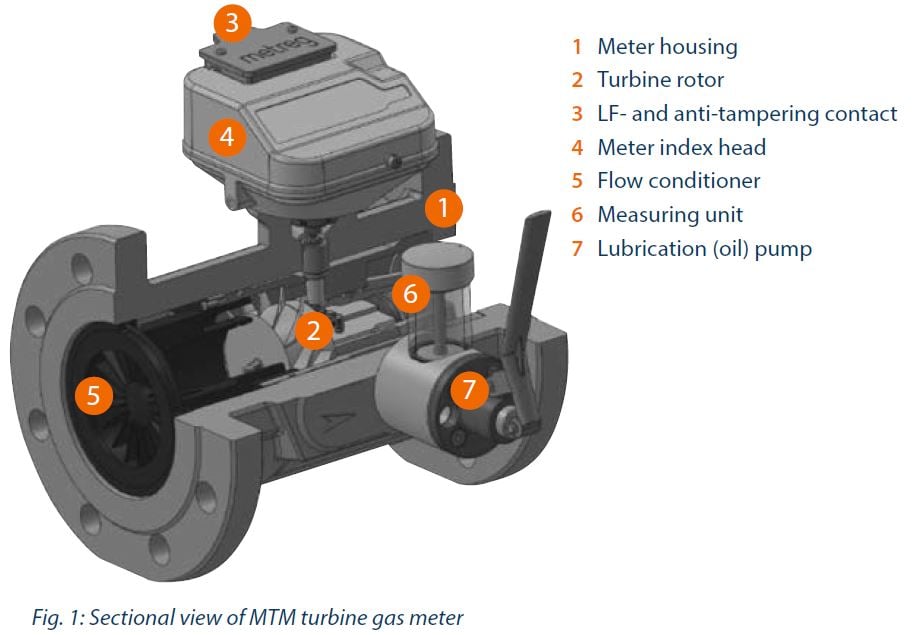

The pressure loss of the MTM turbine meter is minimized through a dynamically optimized inlet diffusor, very low manufacturing tolerances and high precision, low friction ball bearings. The optimized flow conditions allow a minimal straight inlet pipe of 2 DN for low level flow disturbances and only 2 DN additional straight inlet pipe length under severe;y disturbed flow profile according to OIML standards. MTM turbine meter housings are manufactured on a standard basis with raised face (RF) flanges according to DIN/EN 1092-1 or ANSI B 16.5 for class 150/300/600 with a maximum operating pressure of 100 bar/ 10 MPa. Contact us for pricing of these higher pressure flanges.



Specification

    MTM - Metreg Turbine Gas Flow Meter :: DN150, G650
    Approvals according to:
    MID Class 1 (DIN EN 12261:2002) OIML R137-1&2: 2012
    PED (PED 97/23/EG), ATEX
    Nominal Size: DN150
    Meter Size: G650
    Pressure Class: PN16
    Measuring range: 20:1, 50 - 1000 m3/h
    Meter housing: Aluminium
    Turbine wheel: Aluminium
    Index head: Composite, 8-digit
    Sensors:  1xLF (Reed) Typ 1 Imp/m3

    The MTM turbine gas meter is fit for use in the custody transfer measurement of gas
    volumes – especially natural gas in gas transmission stations,  power plants and city
    stations, in biogas injection stations as well as in various industrial plants wherever
    custody transfer equivalent accuracy of measurement is requested.



    Key features

    • Meter range G 65 to G 4000
    • Flow rates from 5 to 6500 m3/h
    • Nominal sizes from DN 50 to DN 300 (2“ to 12“)
    • Pressure class PN 10 to PN 100 and ANSI Class 150, 300 and 600
    • Measuring range 1:20, optional 1:30 depending on operating conditions
    • Meter housing made of anodized high strength Aluminum, Carbon Steel
    or a welded steel construction
    • Permanent lubrication of ball bearings up to 16 bar and DN 50 - DN 150 as standard,
    optional manual lubrication by means of oil pump
    • Manual lubrication by means of oil pump as standard for sizes DN 200 - DN 300
    and for all MTM turbine meters with operating pressure > 16 bar
    • Index head by default made of engineering UV stabilized polymer material,
    optional made of Aluminum
    • Rotating counter (355 °)
    • Compact installation by straight inlet pipe ≥ 2DN and outlet pipe ≥ 1 DN
    with low level perturbations. In case of high level perturbations an additional straight
    inlet pipe of 2DN is necessary
    • Horizontal and vertical mounting positions possible
    • Approvals according to MID (2004/22/EG), OIML, PED (PED 97/23/EG), ATEX
