TBQSe Digital Gas Flow Meters with built-in EVC

Jan 2, 2024

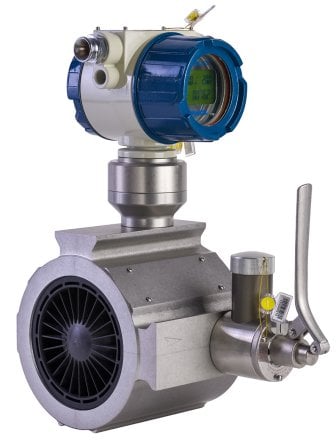

The TBQSe Digital Gas Quantometer from Tancy is primarily designed for measuring the volume of natural gas but can also be used for measuring other non-aggressive gases including Propane, Butane, Air, carbon Dioxide(Co2) and other inert gas types. Approved in accordance with European Regulation 2014/68/EU this model may be installed in potentially explosive atmospheres in category 1G (ATEX/IECEx Ex Zone 0) Ex ia II C T4


Wafer design (DIN PN16/ANSI#150) as standard with threaded smaller models and flanged models on requested
 DN25 - DN150
 Construction - Anodized Aluminium Alloy Body & Turbine blade with painted Aluminium display housing
 Permanently lubrictaed bearing material or optional oil pump
 Low pressure loss design with High turn-down measuring range
 LCD Display - Rate & Total under Standard and Actual conditions along with Pressure & Temp if fitted
 1500 Record Memory storage, accessible via software and PC cable
 EVC Option - AGA NX 19 or fixed programmable P&T factors
 Outputs - Low Frequency & High Frequency pulse, 4-20mA Analogue signal
 Comms - Modbus RS485 or MBus

The TBQSe is optionally available as 5yr Lithium Battery powered or will require DC power if the 4-20mA output is used

TBQSe - Digital Gas Quantometer Flow Meter :: DN25, G10

 EVC Option includes Pressure & Temperature sensors - AGA NX 19 (or fixed programmable P &T factors if no P&T sensors fitted)

 See prices and model details here >>>
