Thermal Mass Flow Meter Guide

About Thermal Mass Flow Meters

The primary reason thermal mass flow meters are popular in industrial applications is the way they are designed and built. They feature no moving parts in a nearly unobstructed straight through flow path, require no temperature or pressure corrections and retain accuracy over a wide range of flow rates. Straight pipe runs can be reduced by using conditioning elements and installation is very simple with inline and insertion options.

How do Thermal Mass Flow Meters work ?

In the example below, the MEMS (CMOS) type flow sensor senses flow by the calorimetric thermal mass flow measurement principle. A micro-heater is placed in the middle of two temperature sensors symmetrically positioned at upstream and downstream points. The cavity below the micro-heater and sensors plays the role of thermal isolation as it is filled with the gas. When the flow passes through the micro-heater, heat is carried away by the flow medium, and the temperature differences measured by the up- and down-stream temperature sensors are directly proportional to the mass flow of the flowing medium. Proper prior calibration is required by the manufacturer dependant on gas type.

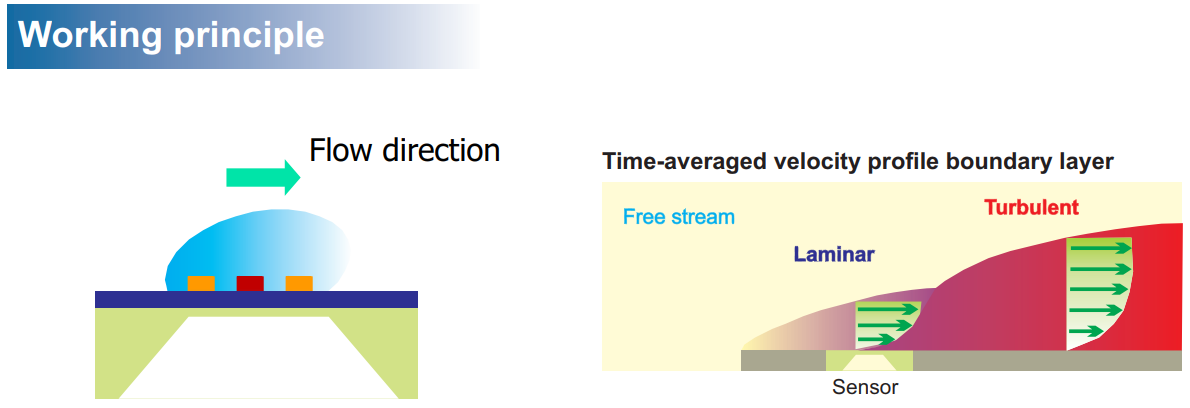

Figure 1:Mems Flow Sensor version operation

The thermal load is created by a constant-power heater. Due to the size of the measurement element, chip flow devices such as this can be very small and consume very little power. In contrast to through-flow constant temperature anemometry and thermal bypass technology, these tiny devices can have extraordinary response times when paired with a well-tuned control package, even as fast as 50 mS.

Thermal flow meters are used in applications that have vapours present, as well as gases that are considered “wet,” such as digester gas. If actual condensation is present and it comes into contact with the sensor, then this can cause a spike in the reading due to the additional cooling effect.

Other types of Thermal Mass flow meter exist including; Thermal bypass, Through-flow constant temperature anemometry and Laminar flow differential pressure. They each have their own advantage and disadvantages over one-another.

Advantages: MEMS(CMOS)

♦ Rapid warm-up time (less than 1 second)
♦ High turndown 200:1
♦ Low pressure drop
♦ Fast response time
♦ No external pressure and temperature compensation required
♦ High Pressure models available
♦ Suitable for a wide variety of gases
♦ Hazardous approved models available
♦ Highly accurate
♦ Long-term stability with no zero-point drift
♦ Can measure the flow of some low-pressure gases that are not dense enough for Coriolis

Disadvantages: MEMS(CMOS)

♦ Not suitable for very wet gases
♦ Affected by flow profile (flow conditioning required eg, straight pipe lengths or diffusers)
♦ Variability during periods of rapid temperature changes
♦ Constant gas composition required, relative to calibration

Typical applications:

♦ Syngas measurement in power generation plant to control efficiency and monitor consumption
♦ Biogas fuel consumption of steam boilers in a factory making tapioca based products
♦ Compressed air flow monitoring of usage in a large automotive factory, allowing for detailed knowledge of demand, cost and wastage

View our range of MEMS Thermal Mass Flow Meters

<
