Range of Lo-cost Hydraulic Gear Flow Meters, Max 400 Bar

Feb 21, 2022

CXGO Gear Flow Meters :: Aluminium or Stainless Steel Construction

This Highly Accurate “Positive Displacement” Spur gear design flow meter range offers high accuracy and high resolution industrial flow meters which can cope with the rigours of hydraulic flow measurement including pulsating flow, static head shock and extremes of pressure and temperature, also suitable for othger liquid measurement applications

Liquid Suitability (Alternative bearings required for some liquids)

♦ Hydraulic oil, Gear oil, Skydrol, Fuels
♦ Polyol + isocyanate, adhesives, resins, silicone
♦ Lacquer, Varnish, Cavity waxes
♦ Brake Fluid, Glycol
♦ Chemicals, Ink, Catalysts and coatings

Features

♦ Excellent Measurement repeatability
♦ High working pressure
♦ Fast response time to step changes in flow rate
♦ Resistant to Hydraulic shock
♦ Meters design provide predictable linear performance
♦ Large turndown of measuring range
♦ Extremely low flowrate capable
♦ High resolution pulse output
♦ Selection of remote flow displays available

Technical data:

♦ High measuring accuracy, ±0.5% or better
♦ Viscosity range= 5 to 25000 centistokes
♦ Medium temperature range: Max. 120°C
♦ Signal output: Pulse (Hall Effect) with 4-20mA option
♦ Material: Housing: 316L Stainless Steel or Anodized Aluminium
♦ Factory calibration: Mineral oil 30 cSt or Special fluid calibrations available on request
♦ Low Pressure Drop
♦ Low Noise emission

Principle of Operation

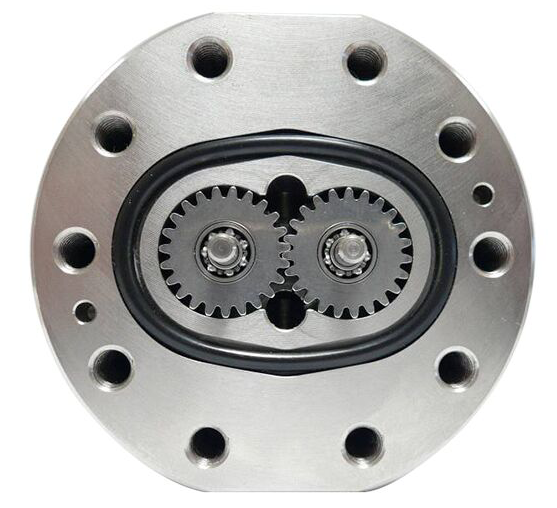

The rotation of the gears due to the passage of liquid is detected through the top housing of meter using a Hall Effect sensor which detects the passing of each gear tooth, even at extremely high speeds. The liquid trapped between the teeth and the chamber wall during transit is the means by which the volume flow is calculated, as the meters’ exact geometrical tooth volume is known and controlled by strict manufacturing tolerances. Each meter is delivered with a unique K-Factor, arrived at during initial manufacturing calibration.
